“Melbourne” stormwater storage basin supply system (France)
Testing and optimizing the design of the supply system
Client: Lille Métropole - Model scale: 1:14.5
Context
In order to fight urban flood risks, Lille Métropole urban area council intends to build a flood relief basin in the town of Tourcoing capable of storing 25,000 m3 during a rainfall event. This basin will be fed by various storm sewer outfalls on the existing network, with a maximum flow rate of 11.6 m3/s. Given the complex 3D pattern of the flows within the structure (weirs, diversion, vertical shafts, etc.), Lille Métropole wishes to have its dimensional design validated through a physical scale model study.
Aims of the physical scale model
The objective of the model is to validate and optimise the hydraulic operation of the structure:
- Operation of the supply structures (frame, pipe)
- Efficiency of a weir-type system for distributing flows between a pollution compartment (sand traps) and a flood compartment;
- Operation of the sand traps;

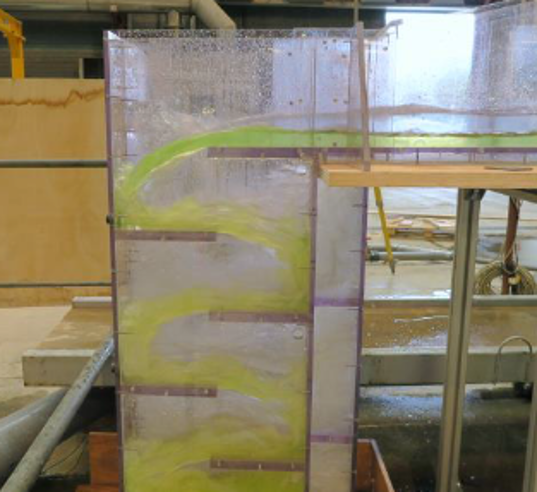

- Operation of the drop stepped shafts;
- Characterisation of operation in downgraded conditions (clogged screens).

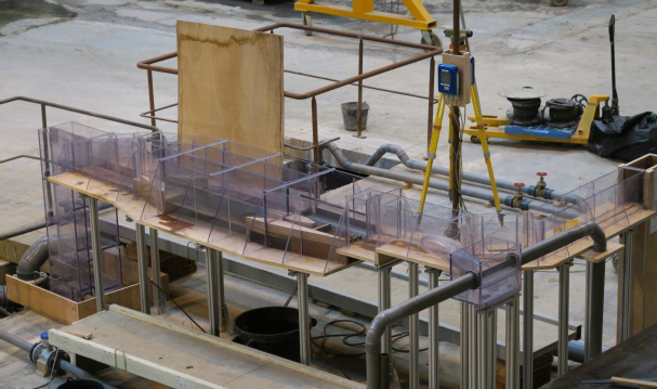

Description of the physical scale model
The physical scale model offers a means of representing all the project components:
- Supply framework (DO1) and supply pipe (DO2);
- Flow distribution chamber with its equipment (screens, weir, etc.)
- Sand traps, scum baffle and vertical shaft in the pollution compartment;
- Feeder canal and vertical shaft in the flood compartment.
